Fitur :
Standard Features
● Portable combustion gas analyzer housed in a rugged aluminum case
● 23 Fuels are programmed - 4 fuels are programmable
● Automatic zero calibration
● Integrated self-check program
● Simultaneous display of 6 parameters on the illuminated display
● Printer with programmable print out cycles
● Standard deviation and average value calculation
● Draft measurement
● Unit selection : ppm - mg - mg(ref O2)
● Gas sampling probe E - length 0.8 ft , hose 8 ft
● Rechargeable battery with charger
● Power supply 110V or 230V
Optional Features
● Soot measurement
● Gas sampling probes with different lengths
● Prepared for high temperature measurement (up to 2732 °F)
PARAMETER | PRINCIPLE | RESOLUTION | ACCUARCY | RANGE** | |||||||||||||||||||||||||||||||||||
● | O₂ | Oxygen | Electro-chemical cell | 0.1 Vol.% | ± 0.2 Vol.% | 0-20.9 Vol. % | |||||||||||||||||||||||||||||||||
● | CO | Carbon monoxide | Electro-chemical cell | 1 ppm | Z* | 0-2000/4000ppm | |||||||||||||||||||||||||||||||||
● | NO | Nitric oxide | Electro-chemical cell | 1 ppm | Z* | 0-2000ppm | |||||||||||||||||||||||||||||||||
● | CO₂ | Carbon dioxide | Calculation | 0.1 Vol.% | ± 0.2 Vol.% | 0-CO₂ max | |||||||||||||||||||||||||||||||||
● | HC | Hydrocarbons | Pellistor | 0.1% | Z* | 0-100% LEL | |||||||||||||||||||||||||||||||||
● | NO₂/NO(x) | Nitric dioxide | Electro-chemical cell | 1 ppm | Z* | 0-100ppm | |||||||||||||||||||||||||||||||||
● | SO₂ | Sulfur dioxide | Electro-chemical cell | 1 ppm | Z* | 0-4000ppm | |||||||||||||||||||||||||||||||||
● | H₂S | Hydrogen sulfide | Electro-chemical cell | 1 ppm | Z* | 0-200ppm | |||||||||||||||||||||||||||||||||
● | NH3/HCL | Ammonia/Hydro Chloric Acid | Electro-chemical cell | 1 ppm | Z* | 0-200ppm | |||||||||||||||||||||||||||||||||
● | TG | Flue gas temperature | NiCr-Ni thermocouple | 1 K | ± 2 % | -4°F / 2192°F | |||||||||||||||||||||||||||||||||
● | TA | Air temperature | Semiconductor | 1 K | ± 0.2 K | -4°F / 248°F | |||||||||||||||||||||||||||||||||
● | P | Draft | Solid state | 0.01 hPa | ± 2 % | ± 40 hPa | |||||||||||||||||||||||||||||||||
● | Soot | Filter paper method | 0-9 | ||||||||||||||||||||||||||||||||||||
● | Losses | Calculation | 0.1% | ± 0.1 % | 0-99.9% | ||||||||||||||||||||||||||||||||||
● | Excess Air | Calculation | 0.1% | ± 0.1 % | 1.0-9.99 | ||||||||||||||||||||||||||||||||||
● | Soot | Filter paper method | 0-9 | ||||||||||||||||||||||||||||||||||||
Z*: | 0 - 20 % of whole measurement range ± 1 % of maximum measurement | ||||||||||||||||||||||||||||||||||||||
21 - 100 % of whole measurement range ± 5 % of displayed measurement | |||||||||||||||||||||||||||||||||||||||
● | Supplied standard with : | ||||||||||||||||||||||||||||||||||||||

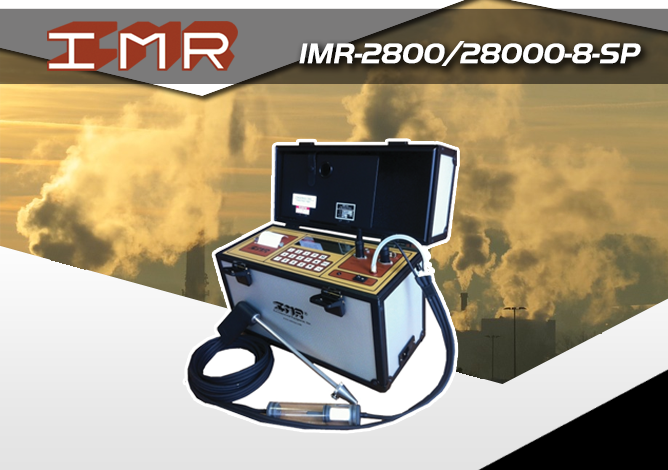

IMR-2800/28000-8-SP supply with Sensor : 02, CO, CO2, NO(x), NO2, NO, SO2, H2S, HC/CH4, NH3/HCL; Gas temp, | |||||||||||||||||||||||||||||||||||||||
Air temp, printer, case, pump, Gas Probe Type E 250mm, hose 2.5 meter, battery charger, Condensation Trap, | |||||||||||||||||||||||||||||||||||||||
Calibration Certificate, and Kartu Garansi, Manual Bahasa Indonesia, EHIS (Environmental and Health Integration System), | |||||||||||||||||||||||||||||||||||||||
dan PEDS (Portable Environment Device System). | |||||||||||||||||||||||||||||||||||||||
