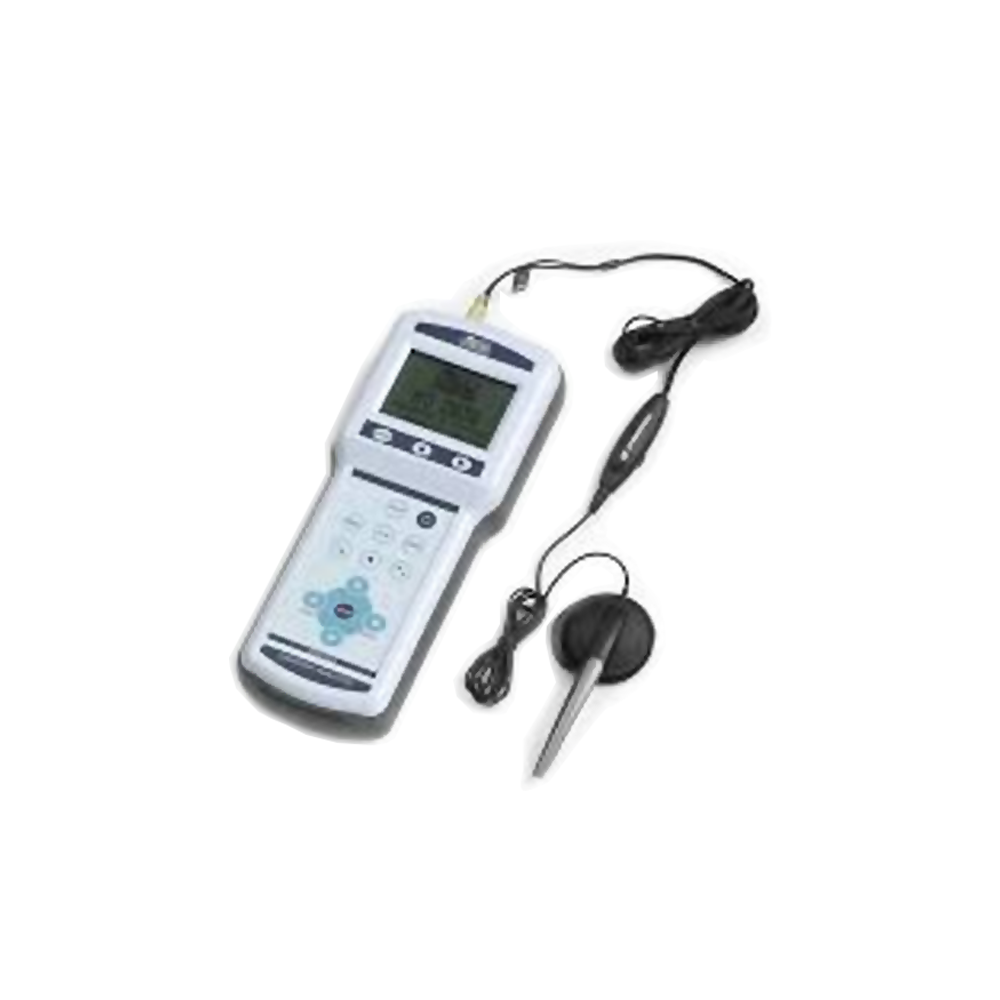

Portable Vibration Meter (Arm, Body, Building)

Delta OHM HD 2030

Alat untuk mengukur percepatan, kecepatan, dan perpindahan.
Portable Vibration Meter (Arm, Body, Building) Portable Vibration Meter (Arm, Body, Building)

Tags: , ,

Measurement modes (Depend on Sensor):
  - Hand-transmitted vibrations
  - Whole-Body vibrations
  - Building vibrations

Measurement parameters:
  RMS, VDV, MTVV, Peak, Max, Min

Frequency weightings:
  - Fz, Fc, Wh for Hand-transmitted vibrations
  - Fz, Fa, Wb, Wc, Wd, We, Wj, Wk for Whole Body vibrations
  - Fz, Fm, Wm for Building vibrations

Octave Band (Hz)
  - Hand-Arm : 4 ~ 2000
  - Whole-Body : 0.5 ~ 250
  - Building-Vibration : 0.5 ~ 250

Third Octave Band (Hz)
  - Hand-Arm : 3.15 ~ 3150
  - Whole-Body : 0.315 ~ 315
  - Building-Vibration : 0.315 ~ 315

Statistic Analysis       : Available, with graphic
Display                : Graphic backlit display
Memory             : 8MB Internal FLASH
SD card Connector      : Support up to 2 GB
Interface             : RS232, USB
Power supply          : AA 1.5V Battery
Work time            : 10 hours
Operating ambient     :  -10°C ~ 50°C, relative humidity < 90%
EHIS Compatible        : YES
GPS Function            : Available with PEDS

Sensor
  Linearity           1% F.S.
  Transverse sensitivity   5% max



Arm, Body, Building
  Body Arm
Type tri-axial accelerometer
Sensitivity 100mV/g 10mV/g
Measuring range 10g pk 500g pk
Frequency response (±5%) 0.5Hz ~ 1000Hz 1Hz ~ 5000Hz
Resonant frequency >27kHz >25kHz
Overload Limit (Shock) 2000 g pk 7000g pk
Working temperature -10°C ~ 50°C -50°C ~ 120°C
Temperature drift <0.17%/°C 0.1%/°C
Bias voltage 2.8V ~ 4.5V 8V ~ 12V

%2
