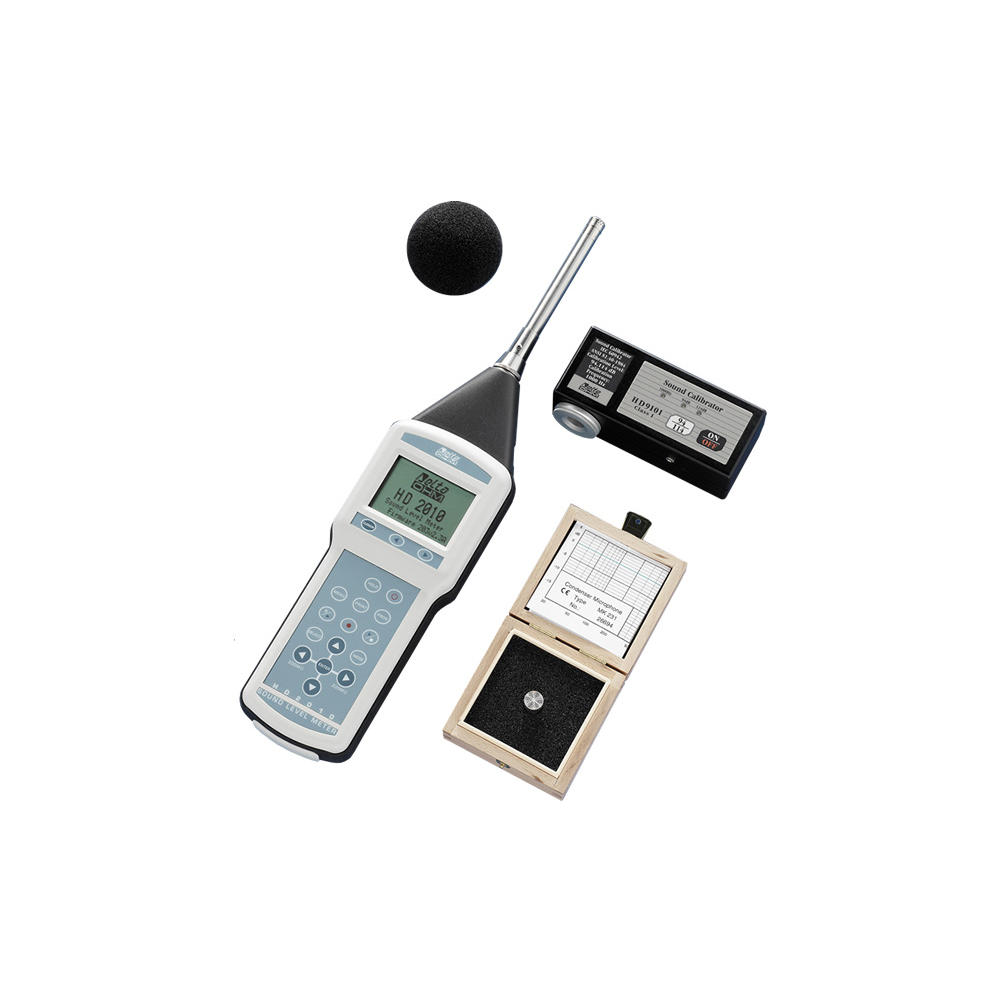

Sound Level Meter

Delta OHM HD2010

Untuk mengukur tingkat kebisingan area ambient

Standar             : Class 1 or 2 X group according to IEC 61672:2002 and
                      class 1 or 2 according to IEC 60651:2001 and IEC 60804:2000
                      type 1 or 2 according to ANSI S1.4-1983 and S1.43-1997
Microphone         : 1/2"  UC52 condenser type, pre-polarized, for free field.
Dynamic range       : 30 dBA ÷ 143 dB Peak
Linear Field         : 80 dB
Acoustic Parameters   : Spl, Leq, SEL, LEP,d, Lmax, Lmin, Lpk, Dose, Ln
Frequency Weights     : simultaneous A, C, Z (only C and Z for Lpk)
Temporal Weights     : simultaneous FAST, SLOW, IMPULSE
Integration           : from 1s to 99 hours with erasing function (Back-Erase)
Statistical Analysis     : It displays up to 3 percentile levels, from L1 to L99
                      Probability distribution and percentile level calculation from L1 to L99
                      (Option 2 “Data Logger” and option 5 “Advanced Analyzer”)
                      Parameter: LFp, Leq, Lpk weighted A, C o Z (solo C o Z per Lpk)
                      Sampling frequency: 8 samples/second
                      Classification: Classes of 0.5 dB
Analysis of Events (Option 2 Data    : Calculation of 5 freely-programmable event parameters
  Logger” and option 5 “Advanced     Calculation of statistical levels from L1 to L99
  Analyzer” )                     Event identification trigger with programmable threshold and duration
                                filter
                              Manual trigger
Data Logger                 : 1 sampling from 1/8 s to 1 hour and 3 profiles with 2 samples/second
Display                     : 3 parameters in numeric format, Backlit LCD (“LCD” option),
                              Profile LAFp with 8 samples/second, Graph of sound level probability
                              distribution, Graph of percentile levels from L1 to L99
Memory                     : Internal memory equal to 4 MB
                              External, via the HD2110MC memory card interface, using MMC or SD
                              cards up to 2 GB
Input/Output                 : RS232 serial and USB interfaces, AC output (LINE), DC output
PC Programs                 : PC interface for data download, set up and instrument management.
                              Licensed software modules to be enabled by hardware key.
Operating conditions           : Working temperature ‑10÷50°C, 25÷90%RH (without condensation),
                              65÷108kPa. Protection degree: IP64
Power Supply                 : 4 x AA batteries or external 9÷12Vdc 300mA
Dimension and weight           : 445x100x50 mm equipped with preamplifier, 740 g (with batteries).
Buku Manual Operasional        : Bahasa Inggris dan Bahasa Indonesia
Kartu Garansi



Environtmental and Health Integration System (EHIS)
Login user admin sebagai induk Instansi dapat menambah login untuk anggota dengan jumlah tak terbatas,
  sebagai upaya pemantauan kegiatan pengujian dilapangan.
Laporan yang tersimpan setiap instansi yang ditampilkan tanggal, nama alat, propinsi dan tempat pengujian
kesling kit sanitarian kit alat kesehatan kit keslingkit water test kit
