Instrument : | |
Dimensions | : 220x180x50 mm (Length x Width x Height) |
Weight | : 1100 g (batteries included) |
Materials | : ABS, Polycarbonate and Aluminium |
Display | : Backlit, dot matrix 128x64 dots, visible area 56x38mm |
Protection Degree | : IP64 |
Instrument uncertainty | : ± 1 digit @ 20°C |
Safety of the stored data | : unlimited |
Connections | : Input for probes with SICRAM module, 8 male 8-pole DIN 45326 connectors |
Working conditions : | |
Working temperature | : (-5) - (50) °C |
Storage temperature | : (-25) - (65) °C |
Working relative humidity | : 0 - 90% RH non condensing |
Power supply : | |
Mains power supply (code SWD10) | : 12Vdc/1A |
Batteries | : 4 batteries 1.5V type AA (C-BABY) |
Autonomy | : 200 hours with 7800mAh alkaline batteries |
Power absorbed with instrument off | : < 45µA |
Temperature measurement : | |
Sensor type | : Pt100 |
Accuracy | : ±0.01°C in the range ±199.99°C, ± 0.1°C |
Measurement range | : (-200) - (+650) °C |
Resolution | : 0.01°C |
Temperature drift @20°C | : 0.003%/°C |
Drift after 1 year | : 0.1°C/year |
Relative humidity Measurement: | |
Measuring range | : 0…100%RH |
Resolution | : 0.1%RH |
Accuracy | : ±0.1%RH |
Temperature drift @20°C | : 0.02%RH/°C |
Drift after 1 year | : 0.1%RH/year |
Serial Interface: | |
Type | : Galvanically isolated RS232C |
Baud rate | : Configurable between 1200 and 38400 baud |
Data bit | : 8 |
Parity | : None |
Stop bit | : 1 |
Flow control | : Xon-Xoff |
Cable length | : max 15m |
Memory | : divided in 64 blocks. |
Storage capacity | : 67600 storages of 8 inputs each |
Printing internal | : to select between: 15, 30 seconds,1, 2, 5, 10, 15, 20, 30 minutes and 1 hour |
Temperature probe : | |
Pt100 sensor temperature probe. | |
Probe stem Ø 14 mm, length 140 mm. Cable length 2 metres. | |
Equipped with SICRAM module. | |
Measuring range (-40) °C - (+100) °C. | |
Uncertainty +/- 0.15 °C in the range (-30) °C - (+100) °C. | |
Response time 10” at constant temperature. | |
Omnidirectional hotwire probe for cold environments. | |
Measuring range: air speed 0.05 ÷ 5 m/s, | |
temperature (-30) - (+30) °C. Probe stem Ø 14 mm, length 110 mm. Cable length 2 metres. | |
Equipped with SICRAM module. | |
Natural ventilation wet bulb probe. Pt100 sensor. | |
Probe stem Ø 14 mm, length 110 mm. | |
Equipped with SICRAM module, | |
Measuring range (+4) °C - (+80) °C. | |
Used for measuring WBGT. | |
Temperature and relative humidity probe. | |
Capacitive RH sensor, Pt100 temperature sensor. | |
Probe stem Ø 14 mm, length 110 mm. | |
Equipped with SICRAM module. | |
Measuring range: temperature (-20) - (+80) °C, | |
relative humidity 0 - 100 %. | |
CO Probe | |
Probe for carbon monoxide CO measurement equipped with SICRAM module, with 2-electrode electrochemical sensor. Measuring range 0 ÷ 500 ppm. Cable length 2m equipped with SICRAM module. | |
CO2 Probe | |
Probe for carbon dioxide CO2 measurement equipped with SICRAM module, with double source infrared sensor. Measuring range 0 ÷ 5000 ppm. Cable length 2m equipped with SICRAM module. |

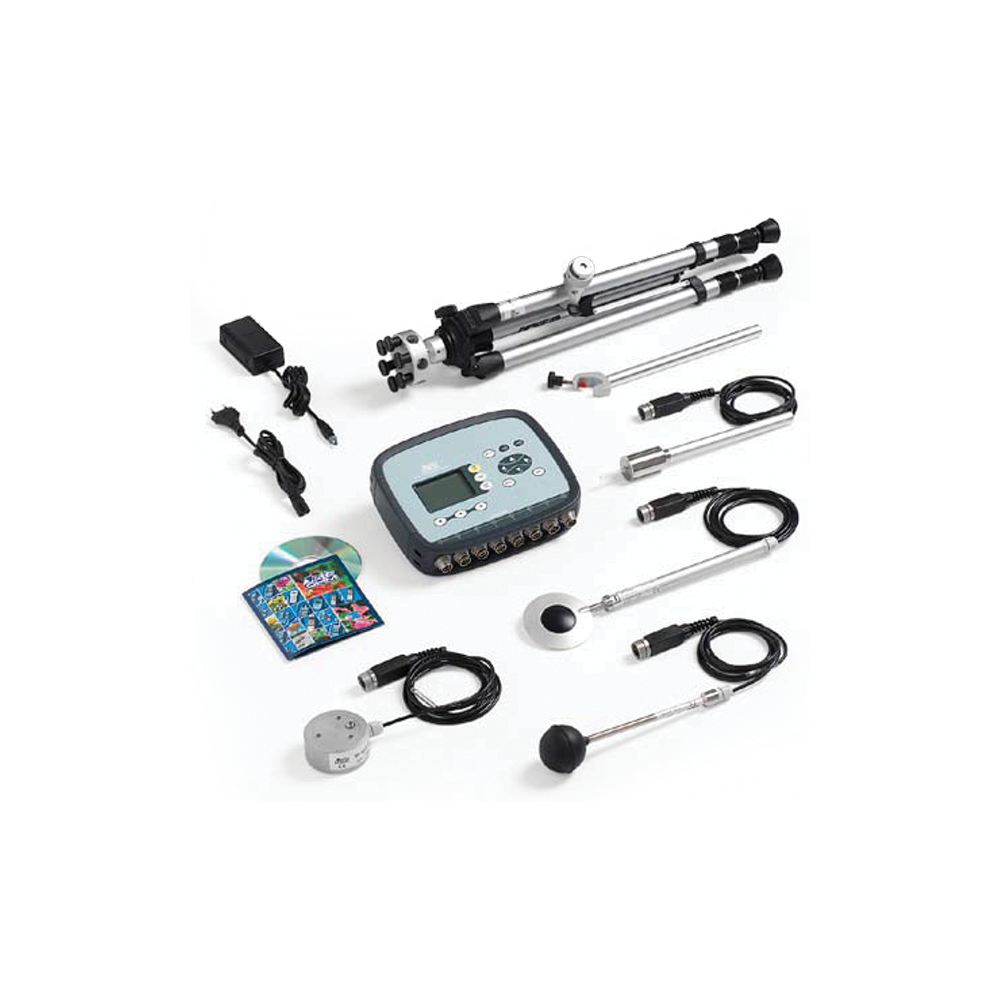

Environtmental and Health Integration System (EHIS)
Supply with:
- Temperature probe
- Omnidirectional hotwire probe for cold environments.
- Natural ventilation wet bulb probe. Pt100 sensor.
- Temperature and relative humidity probe.
- CO Probe
- CO2 Probe
- PC Cable Connection
- Carrying Case
- Power Supply
- Tripod
- Deltalog10 Software
- Discomfort Analysis software
- Magnetic support
- Manual book Indonesia
- EHIS V2
- Kartu garansi
