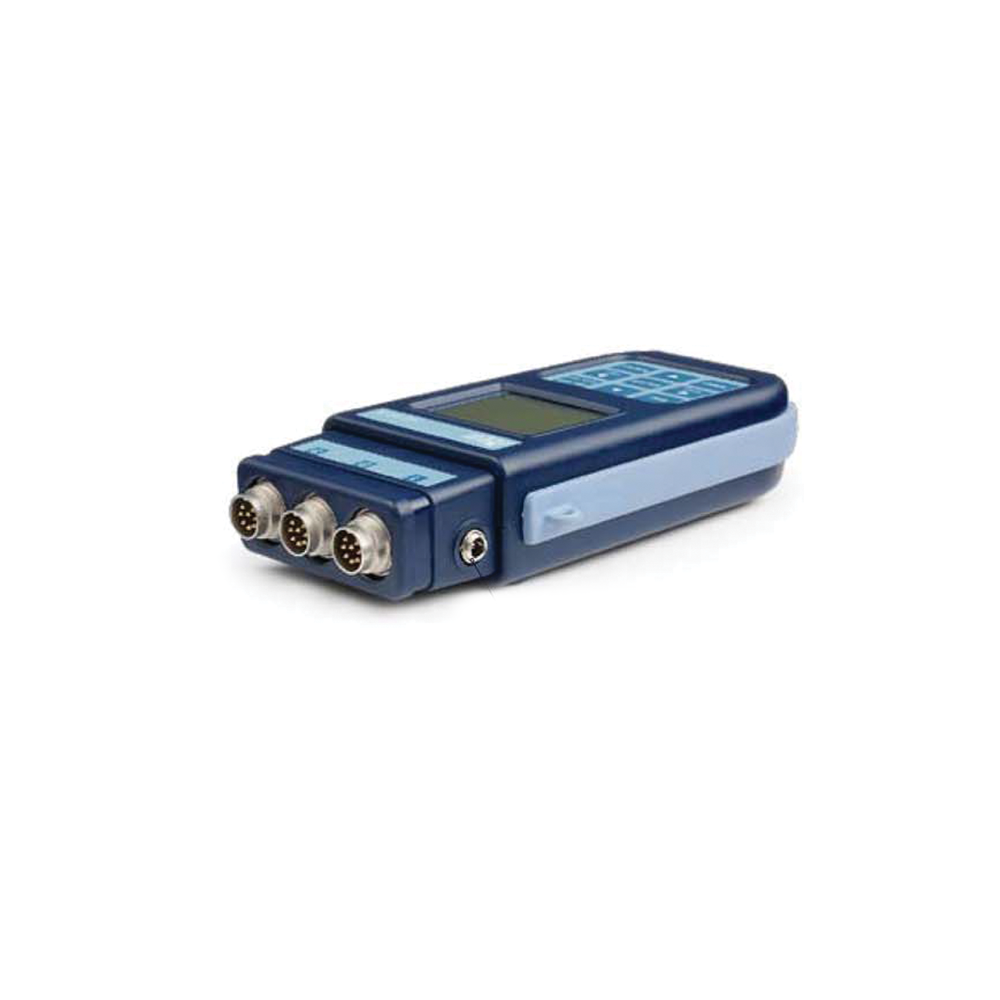

Instrument : | |
Dimensions | : 185x90x40 mm (Length x Width x Height) |
Weight | : 470 g (batteries included) |
Materials | : ABS, rubber |
Display | : back light, with dot-matrix 160x160 points, visible area 52x42mm |
Protection Degree | : IP67 |
Instrument uncertainty | : ± 1 digit @ 20°C |
Safety of the stored data | : unlimited |
Connections | : Input for probes with SICRAM module 3 Connectors 8 male poles DIN 45326 |
Working conditions : | |
Working temperature | : -5 … 50°C |
Storage temperature | : -25 … 65°C |
Working relative humidity | : 0 … 90% RH no condensation |
Power supply : | |
Mains power supply (code SWD10) | : 12Vdc/1A |
Batteries | : 4 batteries 1.5V type AA |
Autonomy | : 200 hours with 1800mAh alkaline batteries |
Power absorbed with instrument off | : < 45µA |
Temperature probe : | |
Sensor type | : Pt100 with thin-film |
Accuracy | : Class 1/3 DIN |
Measurement range | : -40 ÷ 100 °C |
Resolution | : 0.1°C |
Temperature drift @20°C | : 0.003%/°C |
Drift after 1 year | : 0.1°C/year |
Connection | : 4 wires plus SICRAM module |
Connector | : 8 female poles DIN45326 |
Dimensions | : Ø=14 mm L= 150 mm |
Response time T95 | : 15 minutes |
Globe thermometer probe Ø=50 mm : | |
Sensor type | : Pt100 |
Accuracy | : Class 1/3 DIN |
Measurement range | : -10 ÷ 100 °C |
Resolution | : 0.1°C |
Temperature drift @20°C | : 0.003%/°C |
Drift after 1 year | : 0.1°C/year |
Connection | : 4 wires plus SICRAM module |
Connector | : 8 female poles DIN45326 |
Stem dimensions | : Ø=8 mm L= 170 mm |
Response time T95 | : 15 minutes |
Natural ventilation wet bulb : | |
Sensor type | : Pt100 |
Accuracy | : Class A |
Measurement range | : 4 °C ÷ 80 °C |
Resolution | : 0.1°C |
Temperature drift @20°C | : 0.003%/°C |
Drift after 1 year | : 0.1°C/year |
Connection | : 4 wires plus SICRAM module |
Connector | : 8 female poles DIN45326 |
Stem dimensions | : Ø=14 mm L= 170 mm |
Braid length | : 10 cm. at least |
Tank capacity | : 15 cc. |
Tank autonomy | : 96 hours with RH=50%, t = 23°C |
Response time T95 | : 15 minutes |
Serial Interface: | |
Pin | : M12-8 poles |
Type | : RS232C (EIA/TIA574) or USB 1.1 o 2.0 not insulated |
Baud rate | : from 1200 to 38400 baud / with USB baud=460800 |
Data bit | : 8 |
Parity | : None |
Stop bit | : 1 |
Flow control | : Xon-Xoff |
Cable length | : max 15m |
Memory | : divided in 64 blocks. |
Storage capacity | : 67600 memorizations for each of the 3 inputs. |
Logging interval | : selectable among 15, 30 seconds, 1, 2, 5, 10, 15, 20, 30 minutes and 1 hour. |
Environtmental and Health Integration System (EHIS)
Supply with:
- Tripod to be fixed to the instrument, max height 280 mm.
- Connecting cable with M12 connector on instrument side and with 9 poles SubD female connector for RS232C on PC side.
- Portable Thermal Printer
- Kit including 4 thermal paper rolls, width 57 mm, diameter 32 mm.
- 100-240 Vac/12 Vdc-1 A stabilized mains power supply.
- Manual Bahasa indonesia
- Kartu Garansi
